Connectors & Clamps

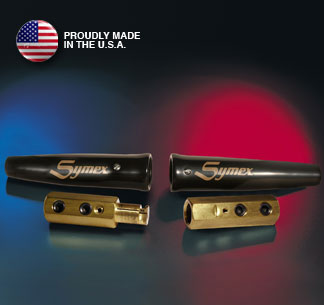

Symex Universal Cable Connector

• Symex connectors are drilled to the precise diameter of the cable. No shimming is required resulting in less heat build up.
• Symex metal parts are precisely machined from heavy, shaped brass extrusion. The cam action design in the male part allows the male/female components to have a positive lock, thus ensuring high conductivity, maximum efficiency and no arcing or burning.
• These connectors have 2 cup point socket screws on each of the male and female parts. They hold the welding cable conductor tightly and securely in place.
• Symex cable connectors interchange with other major brands available on the market today.
• The streamlined cover is made from special material able to withstand high temperatures.
• Above all, the universal cable connector is competitively priced and made in the USA.

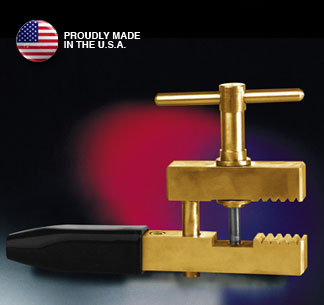

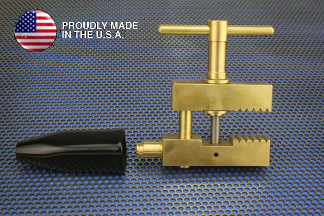

Ground Clamp

Our most popular ground clamp (#108600) features:

• 600 amps
• Protected threads
• Maximum conductivity
• Positive cable connection
• Flat jaw with strong gripping power
• Maximum jaw opening: 1 5/8"
• Weight: 3 lbs. 2ozs.

Other styles of clamps and amperages are available.
